Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer
Hand Push Bitumen Sprayer

Hand Push Bitumen Sprayer

Price 350000.0 INR/ Unit

MOQ : 1 Unit

Hand Push Bitumen Sprayer Specification

  • Working Width
  • 1200mm
  • Fuel Type
  • Diesel
  • Coverage Area
  • 1200 Square Millimeter (mm2)
  • Driven Type
  • Tractor
  • Tank Dimensions (Mm X Mm X Mm)
  • 2400*1500*1400
  • Mount Type
  • Tractor
  • Hole Size
  • 750 Millimeter (mm)
  • Tank Material
  • Mild Steel
  • Material
  • Mild Steel
  • Capacity
  • 3000 Ltr
  • Computerized
  • No
  • Automatic Grade
  • Semi-Automatic
  • Cooling System
  • Human Machine Interface
  • Color
  • Black & Yellow
  • Weight
  • 2500 Kilograms (kg)
  • Warranty
  • 12Months


Hand Push Bitumen Sprayer Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 5 Units Per Month
  • Delivery Time
  • 5 Days
  • Sample Available
  • Yes
  • Packaging Details
  • Standard Packaging
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO


About Hand Push Bitumen Sprayer

  • Model                                      -                   SKE - 3000
  • Capacity                               -            3000 Ltrs
  • Length - L                              -          2400 mm
  • Width - W                             -    1500 mm
  • Height - H                            -        1400 mm
  • Bitumen input hole      -        750 mm
  • Insulation                           -          40 mm Glass Wool
  • Shape                                    -           U-Trapazoidal
  • Spraying Arrangement  -  Hand Spary Nozzle with 2 nos.                                                                                   Handled gun pip. S.S. Corrugated                                                                           Spray pipe for hot bitumen. OR R-2                                                                       Rubber Hose pipe for Emulsion
  • Bitumen Pump        -           1.5 x 1.5 / 2 x 2 Size Pressure Pump                                                                           specially design for hot bitumen and                                                                 emulsion bitumen
  • Reduction Gear         -          3 NU Worm type driven by pully - V Belt                                                             system by engine
  • Air Blower                 -                  Twin Lobe Blower/2 HP - 2800 RPM. Air                                                                 Blower Driven by Pulley - v Belt                                                                                  by engine for burner combusting
  • Burner                  -                  Bozzer Burner/L.A.P Type, Fuel Tank : 50                                                            ltr
  • Wood Bhatti                 -        6 mm thich for wooden fire furnace                                                                    middle at tank with chimney and ash                                                                removal
  • Axle Types (Four Tyre)       - Rear - 1 No. 7 x 50 16 Font - 1 No. 7 x 50                                                                   x16 (Tyre - 4 Nos.)
  • Axle Types (Two Tyre)      - Rear - 1 No. Rear - 9 x 16 (Tyre - 2 Nos.)
  • Temperature gauge          - 0 - 300 C
  • Drum Lifting                  -         Drum Loading by 1 ton. Cap Chain                                                                          Pulley block - movable to tank                                                                                bitumen input hole

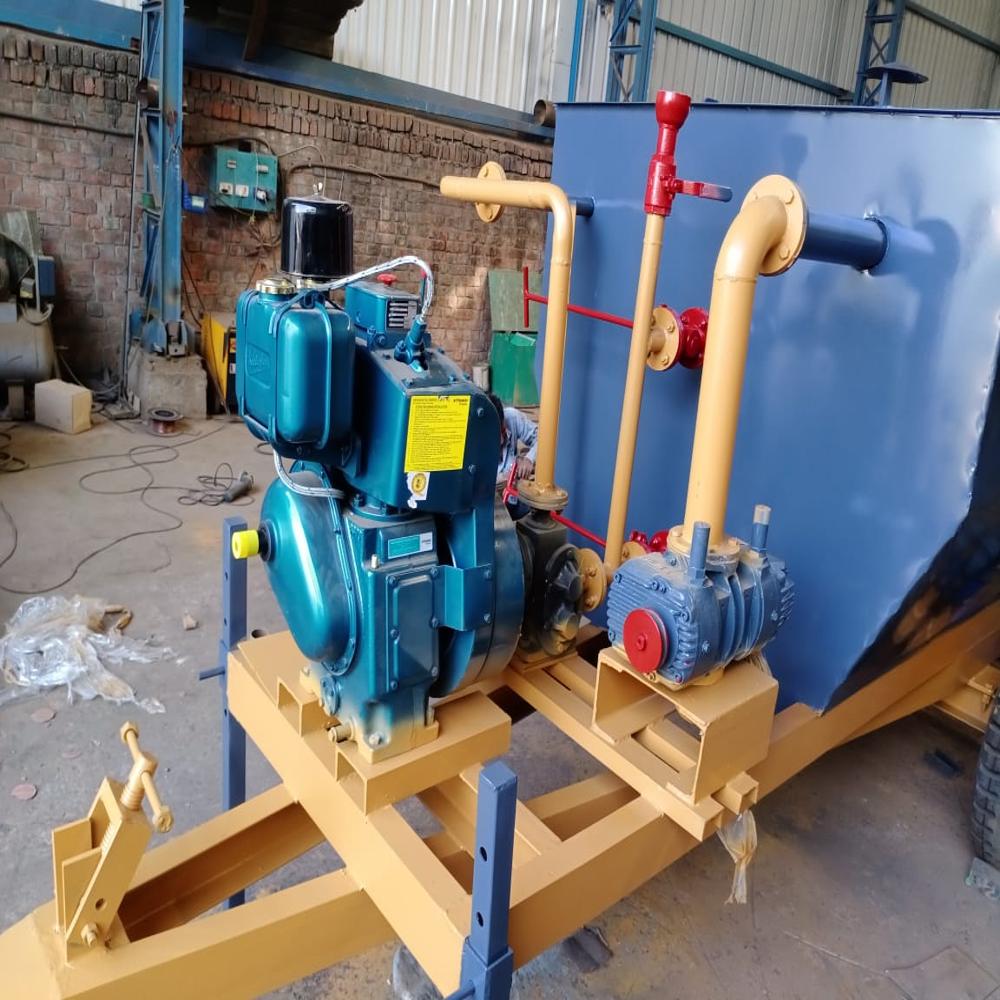

  • Engine                      -              Kirlosker make or ISI make 6 HP / 6.5                                                                    HP / 7.5 HP / 8 HP / 10 HP AT 1500 rpm
  • Cleaning                         -      Unique pressure cleaning system after                                                            used of spraying by L.D.O / Kerosine /                                                                  Diesel.
