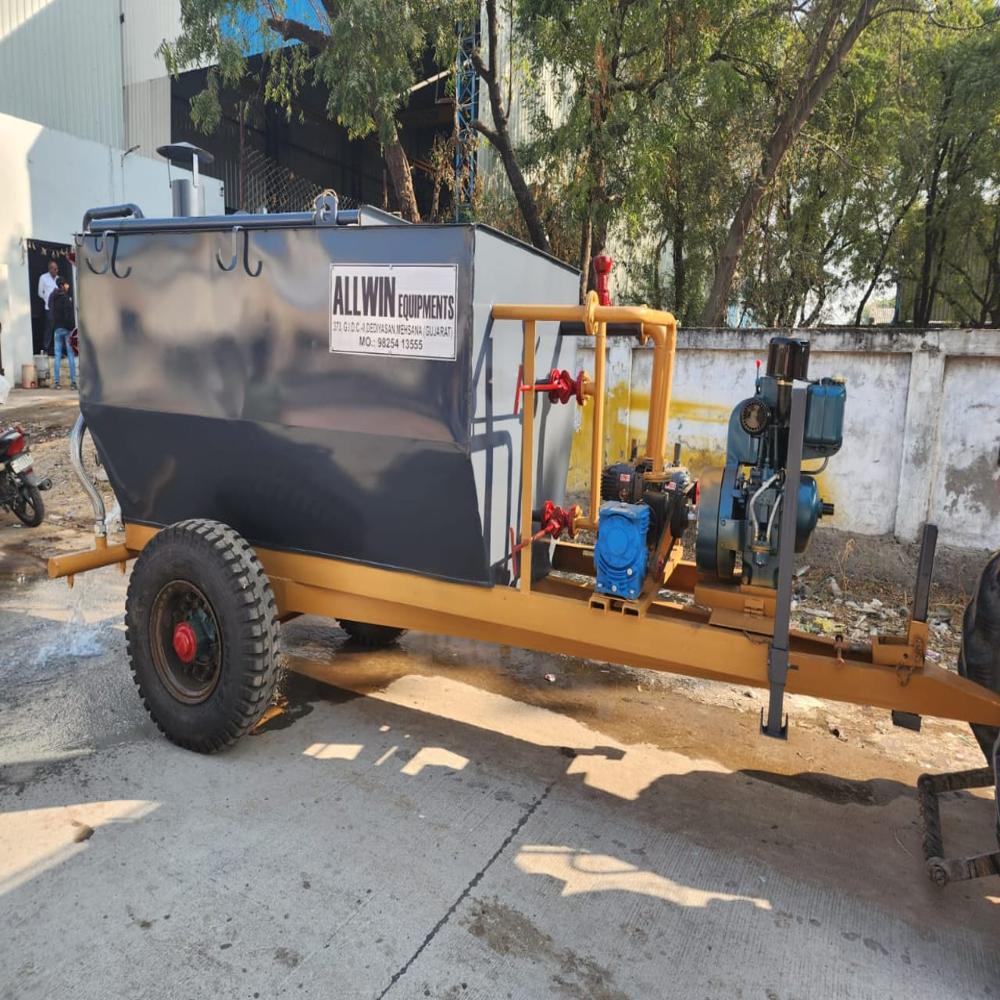

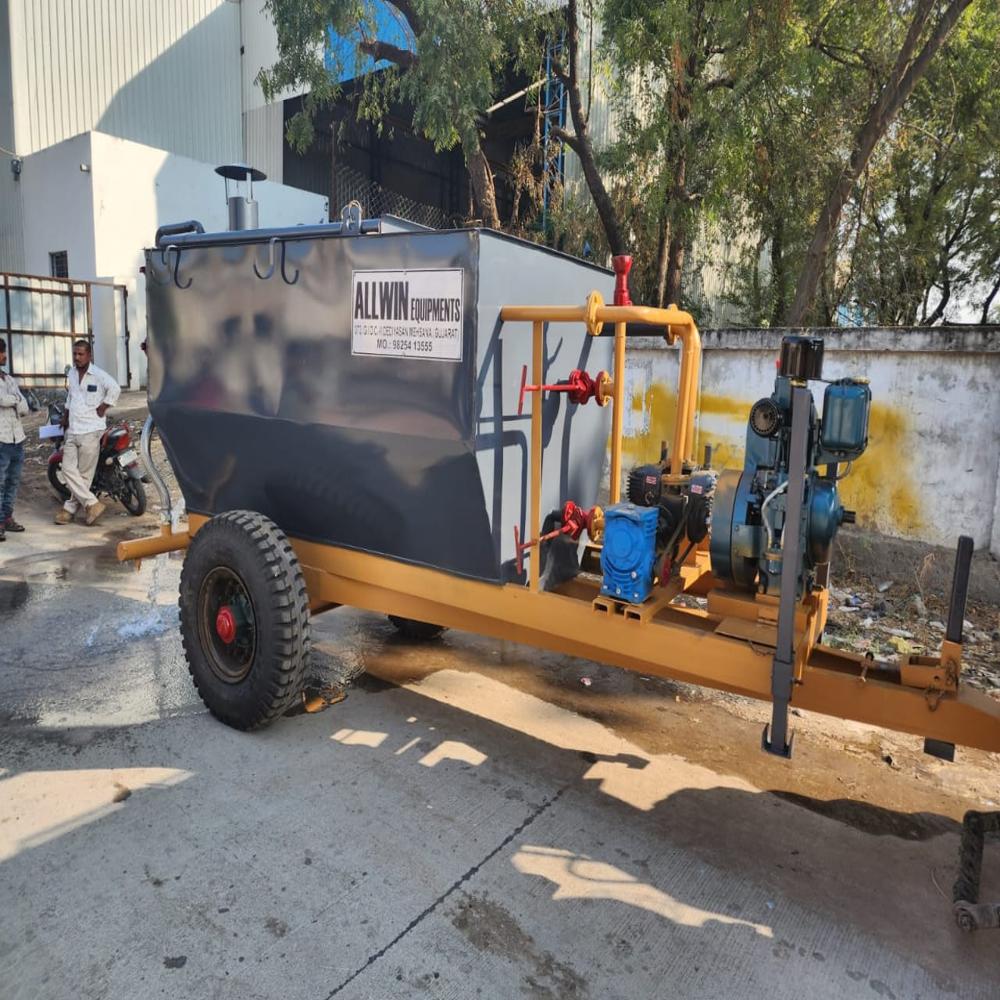

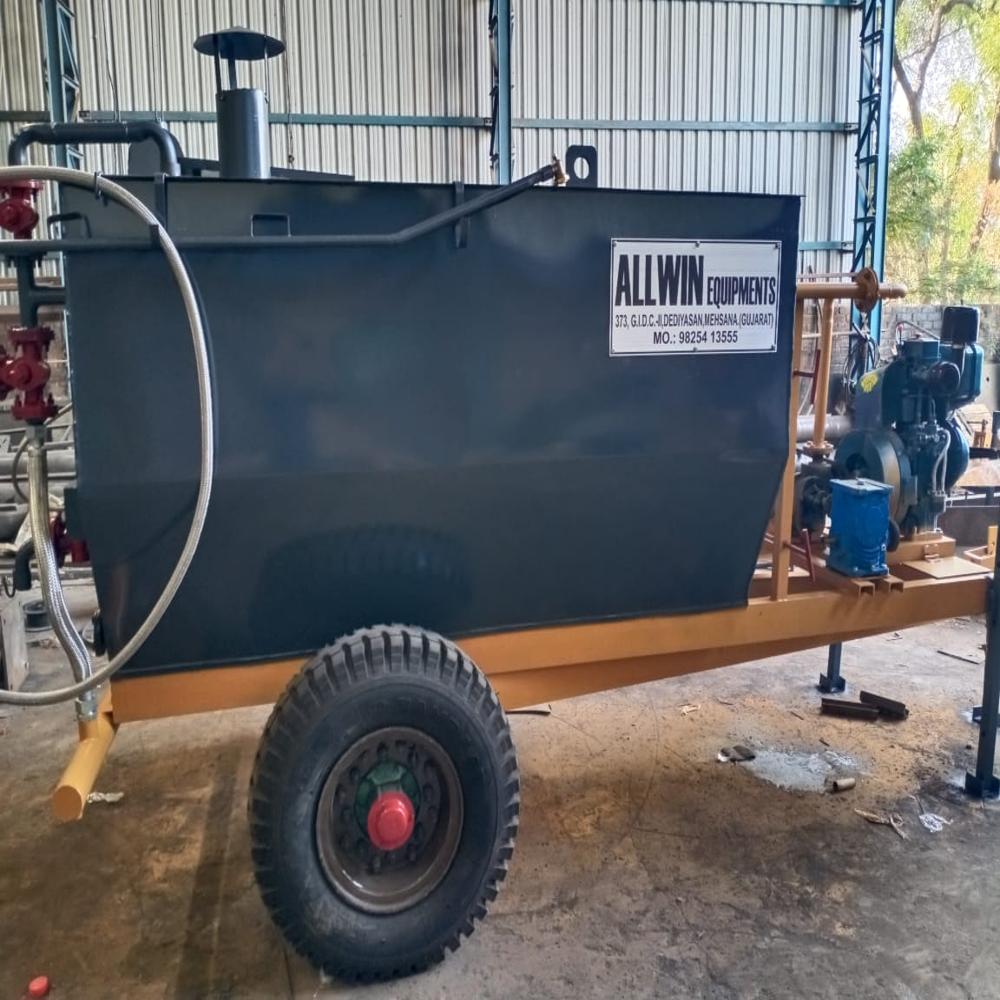

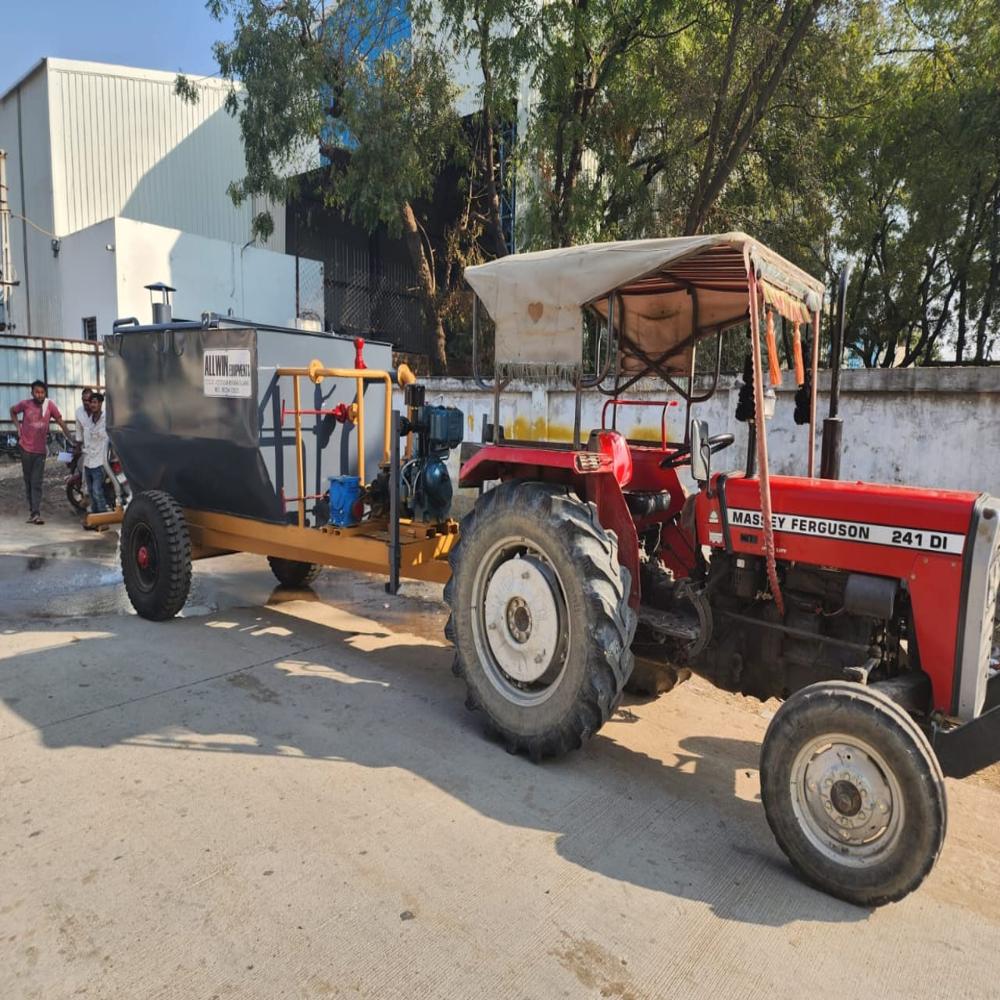

Bitumen Sprayer Trolley

Price 325000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Model - SKE - 2500
Capacity - 2500 Ltrs
Length - L - 2000 mm
Width - W - 1500 mm
Height - H - 1380 mm

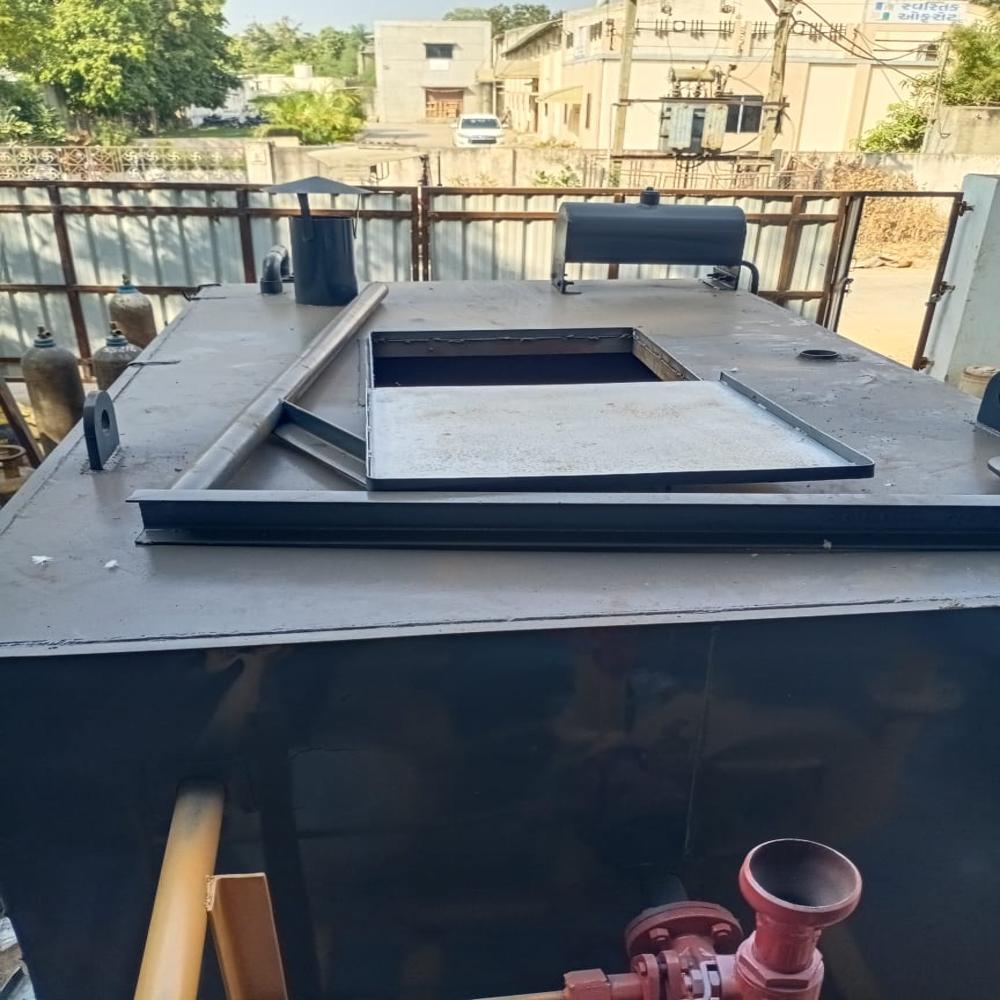

Bitumen input hole - 750 mm
Insulation - 40 mm Glass Wool
Shape - U-Trapazoidal
Spraying Arrangement - Hand Spary Nozzle with 2 nos. Handled gun pip. S.S. Corrugated Spray pipe for hot bitumen. OR R-2 Rubber Hose pipe for Emulsion

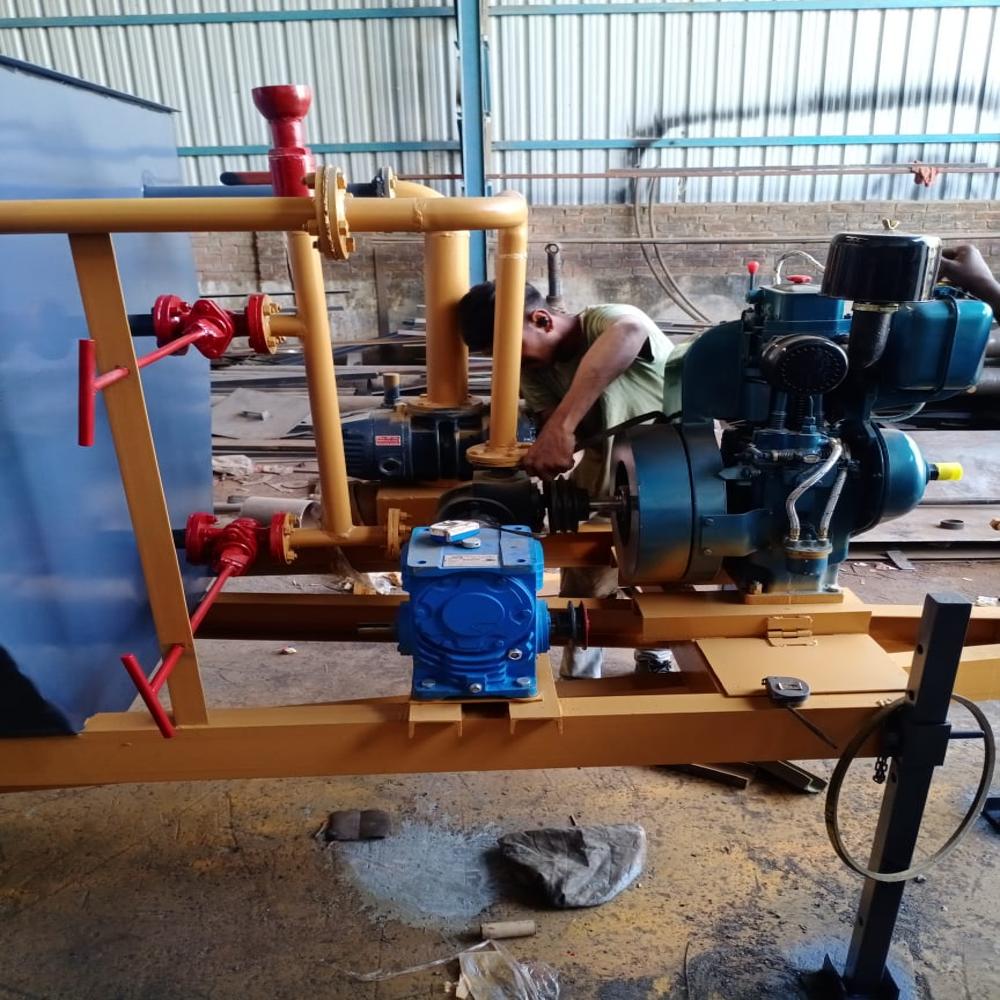

Bitumen Pump - 1.5 x 1.5 / 2 x 2 Size Pressure Pump specially design for hot bitumen and emulsion bitumen
Reduction Gear - 3 NU Worm type driven by pully - V Belt system by engine
Air Blower - Twin Lobe Blower/2 HP - 2800 RPM. Air Blower Driven by Pulley - v Belt by engine for burner combusting
Burner - Bozzer Burner/L.A.P Type, Fuel Tank : 50 ltr
Wood Bhatti - 6 mm thich for wooden fire furnace middle at tank with chimney and ash removal
Axle Types (Four Tyre) - Rear - 1 No. 7 x 50 16 Font - 1 No. 7 x 50 x16 (Tyre - 4 Nos.)
Axle Types (Two Tyre) - Rear - 1 No. Rear - 9 x 16 (Tyre - 2 Nos.)
Temperature gauge - 0 - 300 C
Drum Lifting - Drum Loading by 1 ton. Cap Chain Pulley block - movable to tank bitumen input hole
Engine - Kirlosker make or ISI make 6 HP / 6.5 HP / 7.5 HP / 8 HP / 10 HP AT 1500 rpm
Cleaning - Unique pressure cleaning system after used of spraying by L.D.O / Kerosine / Diesel.
